Valves/Fittings

2-way zone valve

Can be used in solar and heating installations as a zone valve, which means that single parts of the system can be connected or disconnected.

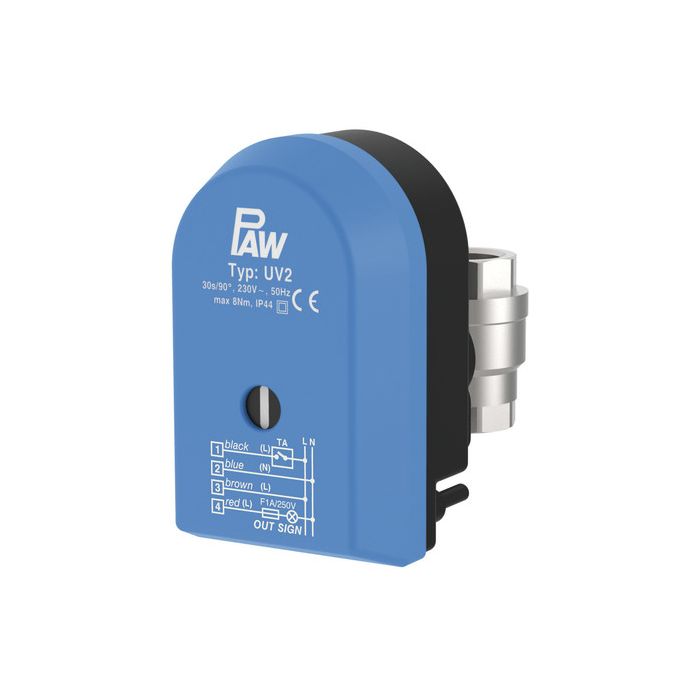

The actuator is equipped with a relay which is actuated by a 2-point signal, if need be it can also be manually operated.

The 2-way zone valve can be operated in both directions.
SKU
5635x2
Prices are only visible for registered users.

Our offer is exclusively aimed at corporate clients.

Operating data
Max. operating temperature: 120 °C
Min. operating temperature: 0 °C
Nominal pressure: 16 bar
Dimensions
Height: 116 mm
Width: 72 mm
Depth: 125 mm
Electrical data (heating/actuators)
Setting time 90°: 30 s
Position indication: open / closed
Rotation angle: 90°
Manual operation: yes
Protection class: II
Electrical connection: 230 V - 50 Hz
Ambient temperature: 0 °C
Torque actuator: 6 Nm
Can be used in solar and heating installations as a zone valve, which means that single parts of the system can be connected or disconnected.

The actuator is equipped with a relay which is actuated by a 2-point signal, if need be it can also be manually operated.

The 2-way zone valve can be operated in both directions.
