HeatBloC®
Heating
technology

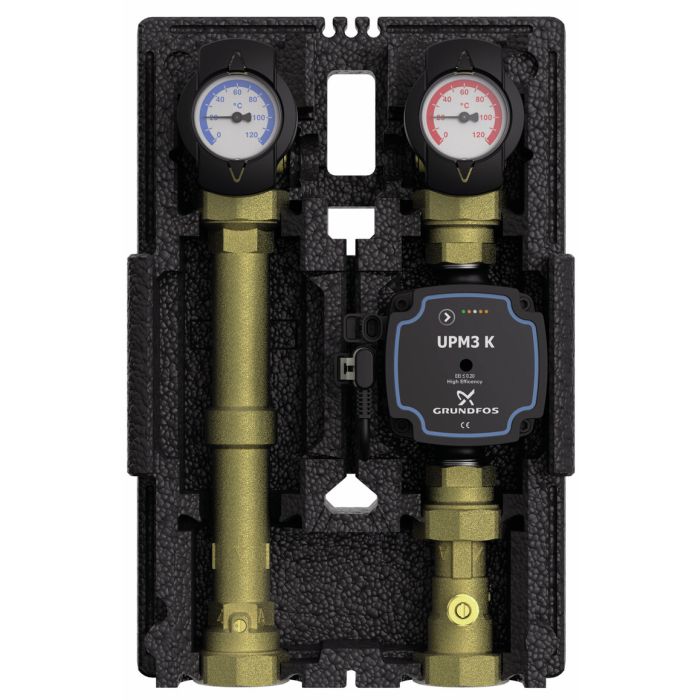

CoolBloC C31 DN 25 (1")
direct / unmixed
Field of application: for boiler charging, for modulating temperature heating
Recommended application range: up to 46.5 kW; 20 K up to 2000 l/h
Field of application: for boiler charging, for modulating temperature heating
Recommended application range: up to 46.5 kW; 20 K up to 2000 l/h
Manufacturer:
Operating data
Max. operating temperature:
95 °C
Dial thermometer:
0 - 120 °C
Output:
46 kW
Max. operating pressure:
6 bar
Temperature difference:
20 K
Kvs value:
7.2
Min. operating temperature:
5 °C
Flow rate:
2000 l/h
Equipment
Check valves:
1 x 200 mm wc
Dial thermometer:
0 - 120 °C
Shut-off valves:
Ball valves with handle
Opening pressure check valve:
200 mm wc
Number of check valves:
1
Dimensions
Height:
383 mm
Width:
250 mm
Nominal diameter:
DN 25 (1")
Installation length:
342 mm
Connection generator:
1½" ext. thread, flat sealing
Connection consumer:
1" int. thread
Centre distance:
125 mm
Materials
Valves and fittings:
Brass
Gaskets:
EPDM
Insulation:
EPP
