Valves/Fittings

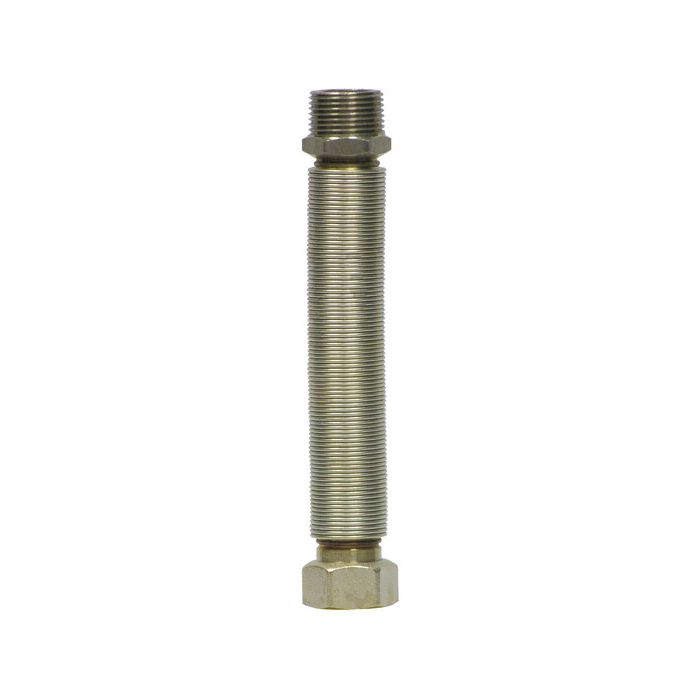

Flexan 180-300 mm

with 1 x joint
SKU
853x
Prices are only visible for registered users.

Our offer is exclusively aimed at corporate clients.

Operating data
Max. operating temperature: 180 °C
Min. operating temperature: -30 °C
Nominal pressure: 16 bar
Burst pressure: 60
Dimensions
Length: 180 - 300 mm
Materials
Hose: Stainless steel 1.4404
Nut: Brass, nickel-plated
Flexan is a fitting system for flexible connections, it permits to quickly compensate length differences and offsets, for example for the assembly or exchange of radiators.
Stretchable by 75 %.
Not suited for dynamic loads!

In compliance with the Italian norms
- UNI-CIG 7129/72
- UNI-CIG 8041/85
- UNI-CIG 8042/85
