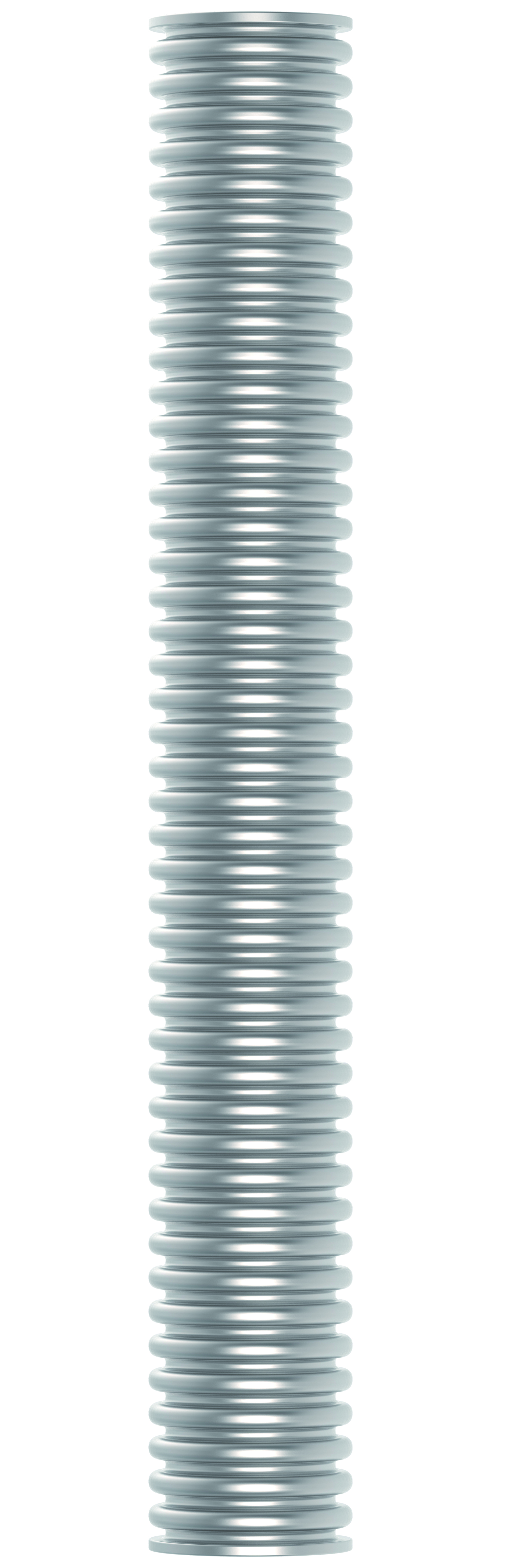

Stainless-steel corrugated hose Solarflex

Ideal for the roof part leading to the collector.

Manufacturer:

PAW GmbH & Co. KG
Böcklerstr. 11 31789 Hameln
Germany
info@paw.eu

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical data

Operating data

Min. operating temperature: -30 °C

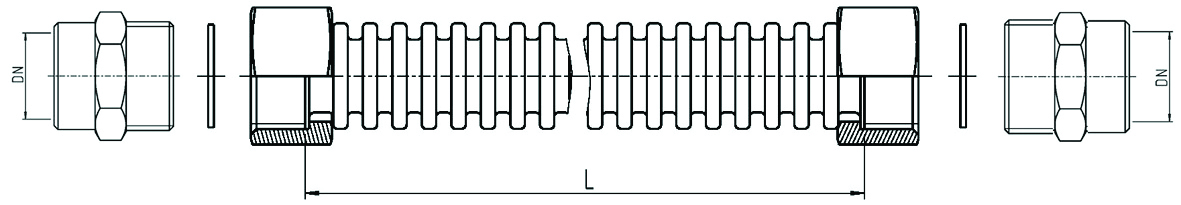

Dimensions

Length: Item no. 840180: 18 - 800 mm; Item no. 840280: 22 - 800 mm

Description

Ideal for the roof part leading to the collector.
Two soldered connections for clamping-ring compression fittings, for diameters of 18 mm or 22 mm.
Temperature: -30 °C ... 260 °C
Max. admissible pressure: 12 bars
Bursting pressure: 120 bars
Bending radius: 45 mm
Wall width: 0,2 mm
Inside diameter: 12 mm or 16 mm
Length: 500 mm or 800 mm

Downloads

There are currently no installation and operating instructions available for download.



Product information

This product does not require any product safety instructions.
