SolarBloC® midi Premium
Application range:
Low-Flow (= 0.25 l/minute per m² collector surface), up to 60 m² collector surface
High-Flow (= 0.5 l/minute per m² collector surface), up to 40 m² collector surface
Please note:
In order to guarantee a trouble-free function it is essential to carry out a hydraulic dimensioning/check.
Low-Flow (= 0.25 l/minute per m² collector surface), up to 60 m² collector surface
High-Flow (= 0.5 l/minute per m² collector surface), up to 40 m² collector surface
Please note:
In order to guarantee a trouble-free function it is essential to carry out a hydraulic dimensioning/check.
Operating data
Max. operating temperature:
120 °C
Dial thermometer:
0 - 160 °C
Max. operating pressure:
6 bar
Low-flow:
= 0.25 l/min per m² of collector surface
High-flow:
= 0.5 l/min per m² of collector surface
Equipment
Controller:
SC3.5
Check valves:
2 x 200 mm wc
Pressure gauge:
0-6 bar, resistant to high temperatures
Dial thermometer:
0 - 160 °C
Shut-off valves:
Ball valves
Sensors:
2 x Pt1000 (integrated) / 3 x Pt1000 (enclosed)
Safety valve:
6 bar
FlowRotor:
0.5-15 l/min
Airstop:
yes
Dimensions
Height:
557 mm
Width:
322 mm
Nominal diameter:
DN 20 (¾")
Depth:
150 mm
Installation length:
298 mm
Centre distance:
100 mm
Connection primary:
¾" int. thread
Materials
Valves and fittings:
Brass
Gaskets:
EPDM / AFM34
Insulation:
EPP
Check valves:
Brass

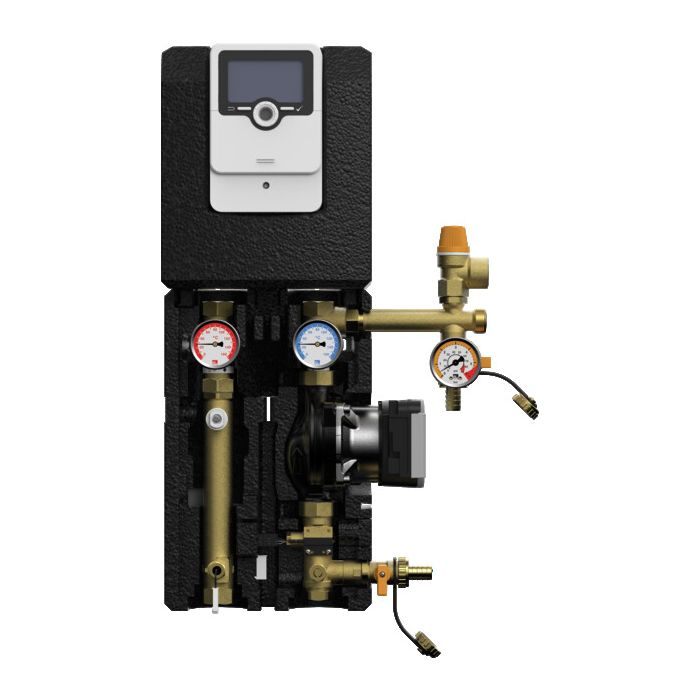

The SolarBloC midi Premium is a compact and completely premounted solar station with integrated controller and combined sensors.A digital flow rate and temperature sensor is integrated in the return, a temperature sensor in the flow.
All fluid-carrying parts are made of brass, fully assembled - self-sealing or flat gaskets
All connections ¾" internal thread, flow and return to the collector at equal height - for simple assembly with double pipe
Premounted on steel wall bracket,
can be easily mounted to the wall or - with PAW mounting equipment - directly to the storage tank
Full port ball valves key-actuated,
easy handling, no risk of scalding
Check valve in the flow and return ball valve,
can be opened by turning the handle to a 45 °C position, 200 mm wc each circuit, especially for solar systems, prevents unwanted circulation
Airstop in the flow
for permanent deaeration of the heat transfer medium
Compact design insulation with optimised function
made of durable elastic EPP; 100 % insulated valves and fittings - excellent ventilation and cooling of the pump, minimal heat losses
Solar safety group
Solar pressure relief valve 6 bars, pressure gauge resistant to high temperature 0-6 bars with valve, fill and drain valve for flushing and filling, flat sealing connection for an expansion tank
With solar high-efficiency pump by Grundfos or Wilo corresponds to energy efficiency grade A, already installed and prewired
All fluid-carrying parts are made of brass, fully assembled - self-sealing or flat gaskets
All connections ¾" internal thread, flow and return to the collector at equal height - for simple assembly with double pipe
Premounted on steel wall bracket,
can be easily mounted to the wall or - with PAW mounting equipment - directly to the storage tank
Full port ball valves key-actuated,
easy handling, no risk of scalding
Check valve in the flow and return ball valve,
can be opened by turning the handle to a 45 °C position, 200 mm wc each circuit, especially for solar systems, prevents unwanted circulation
Airstop in the flow
for permanent deaeration of the heat transfer medium
Compact design insulation with optimised function
made of durable elastic EPP; 100 % insulated valves and fittings - excellent ventilation and cooling of the pump, minimal heat losses
Solar safety group
Solar pressure relief valve 6 bars, pressure gauge resistant to high temperature 0-6 bars with valve, fill and drain valve for flushing and filling, flat sealing connection for an expansion tank
With solar high-efficiency pump by Grundfos or Wilo corresponds to energy efficiency grade A, already installed and prewired
