Valves/Fittings

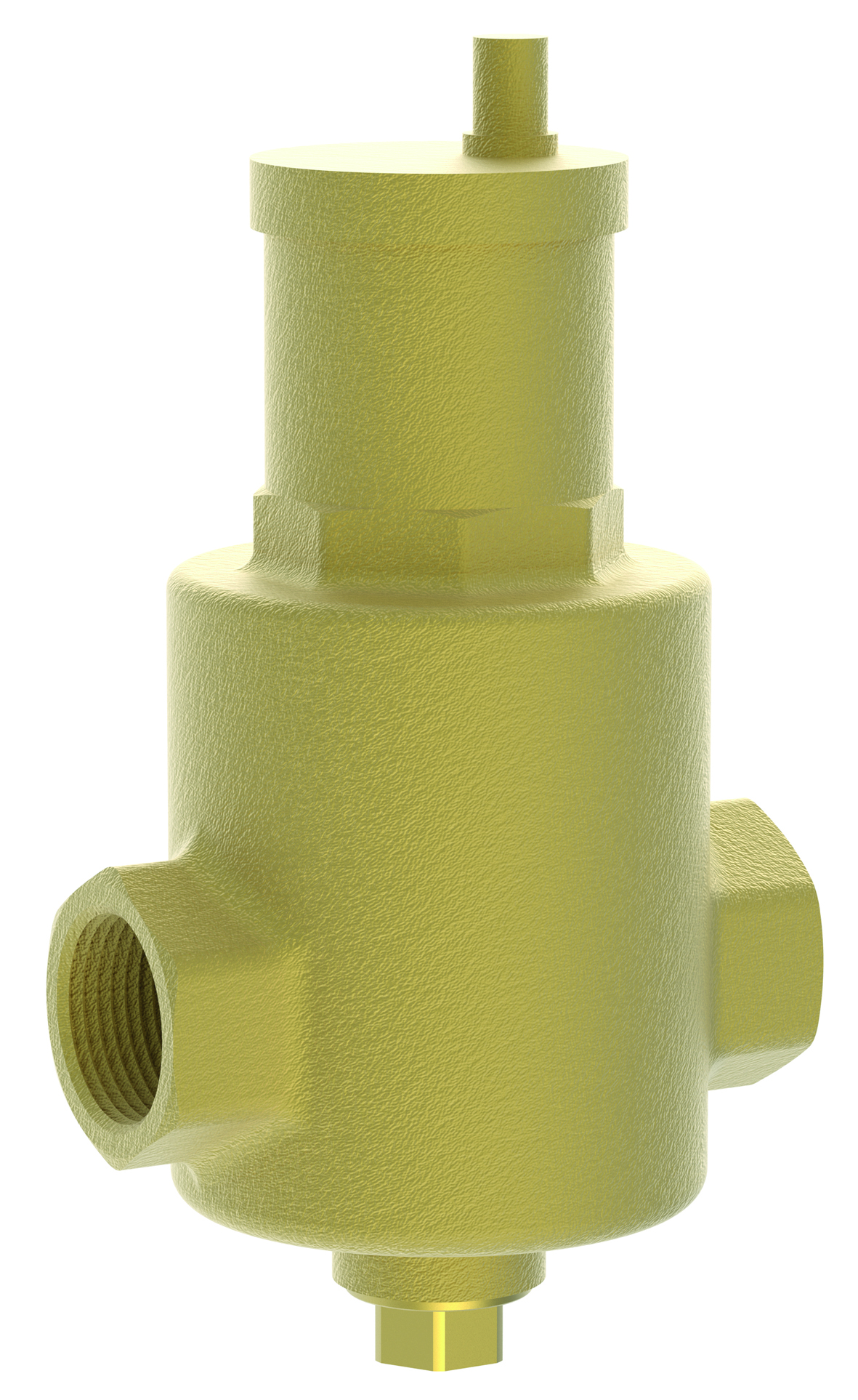

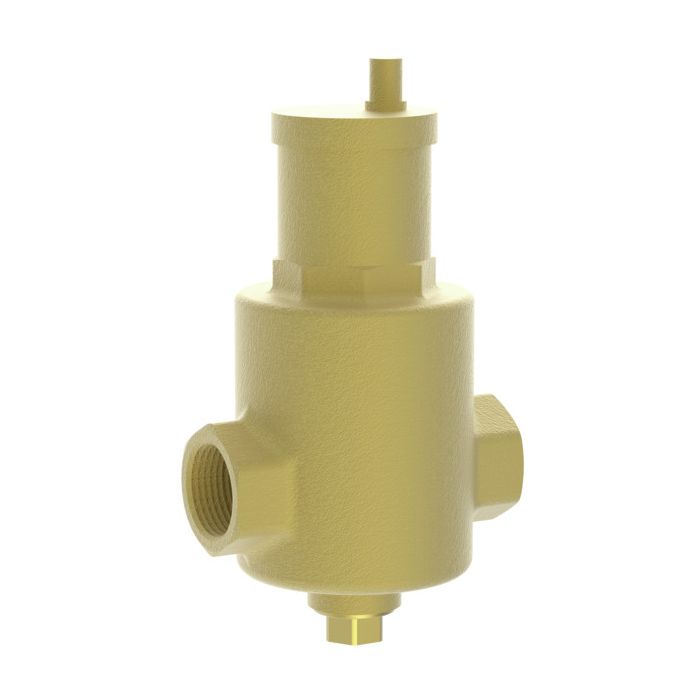

Microbubble resorber
with automatic air vent
completely made of brass,
stainless steel grid and drain connection ½'' for sludge removal,
for the use in heating systems,
connections = internal thread,
max. speed through the microbubble resorber 1.2 m/s
52374: L = 110 mm; up to 35.3 l/min or 2.12 m³/h
52375: L = 124 mm; up to 57.8 l/min or 3.47 m³/h
completely made of brass,
stainless steel grid and drain connection ½'' for sludge removal,
for the use in heating systems,
connections = internal thread,
max. speed through the microbubble resorber 1.2 m/s
52374: L = 110 mm; up to 35.3 l/min or 2.12 m³/h
52375: L = 124 mm; up to 57.8 l/min or 3.47 m³/h
Manufacturer:
Operating data
Max. operating temperature:
110 °C
Flow rate:
57,8
Maximum flow:
3.47
Dimensions
Nominal diameter:
DN 32 (1¼")
Length:
124 mm
with automatic air vent
completely made of brass,
stainless steel grid and drain connection ½'' for sludge removal,
for the use in heating systems,
connections = internal thread,
max. speed through the microbubble resorber 1.2 m/s
52374: L = 110 mm; up to 35.3 l/min or 2.12 m³/h
52375: L = 124 mm; up to 57.8 l/min or 3.47 m³/h
completely made of brass,
stainless steel grid and drain connection ½'' for sludge removal,
for the use in heating systems,
connections = internal thread,
max. speed through the microbubble resorber 1.2 m/s
52374: L = 110 mm; up to 35.3 l/min or 2.12 m³/h
52375: L = 124 mm; up to 57.8 l/min or 3.47 m³/h
There are currently no installation and operating instructions available for download.
This product does not require any product safety instructions.
