Valves/Fittings

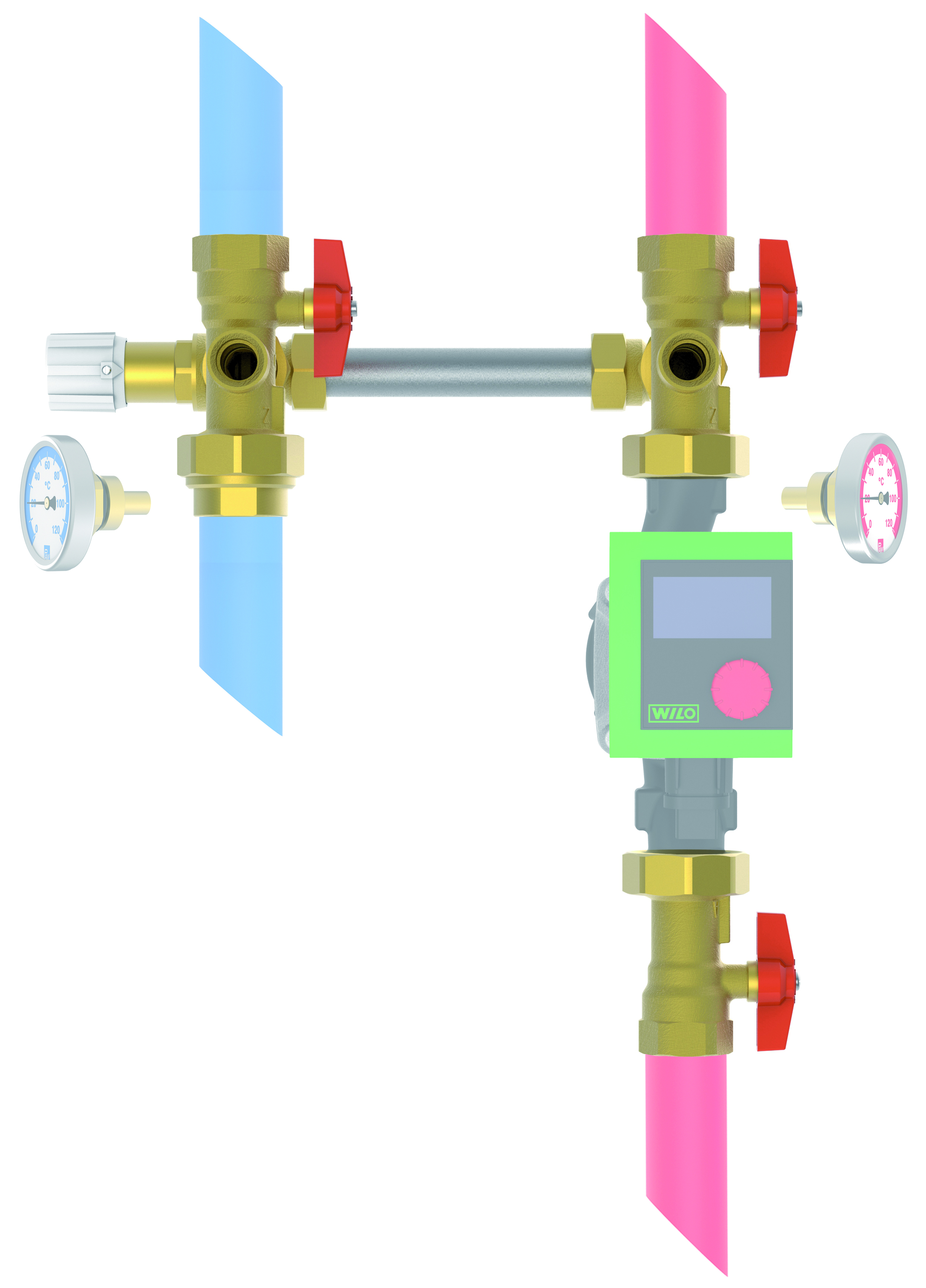

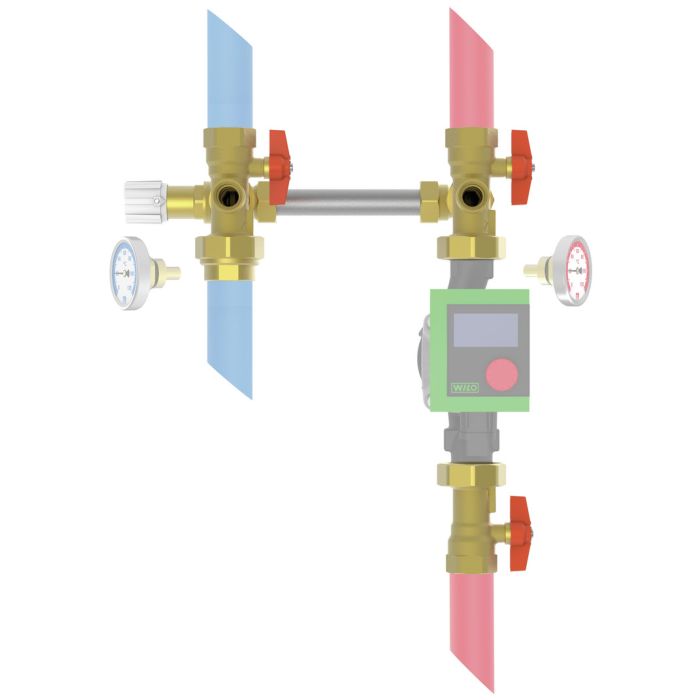

Bypass set K7 DN 25

pump can be isolated

Pressure side:
- PAW multifunctional valve, with red butterfly handle
- Check valve, can be opened manually
- Automatic air passage
- With 2 nuts and 2 gaskets for a pump DN 25 (without pump, without dial thermometer)

Suction side:
- PAW pump ball valve, with red butterfly handle

Return:
- PAW multifunctional valve, with red butterfly handle
- Thread connection

Bypass:
- Differential pressure overflow valve ¾" with scale and thread connection
- Zinced bypass pipe with elbow gland

A min = 80 mm
A max = 200 mm
for 1": H = 360 mm
for 1¼": H = 395 mm

Thermometer available as accessory, item number 21711 (red), 21721 (blue)

SKU
2801x
Prices are only visible for registered users.

Our offer is exclusively aimed at corporate clients.

Operating data
Nominal pressure: 8 bar
Dimensions
Nominal diameter: DN 25 (1")
Connection internal thread: 1"
PAW flange (with nut): 1"
Materials
Valves and fittings: Brass
Handle: Plastic
