Valves/Fittings

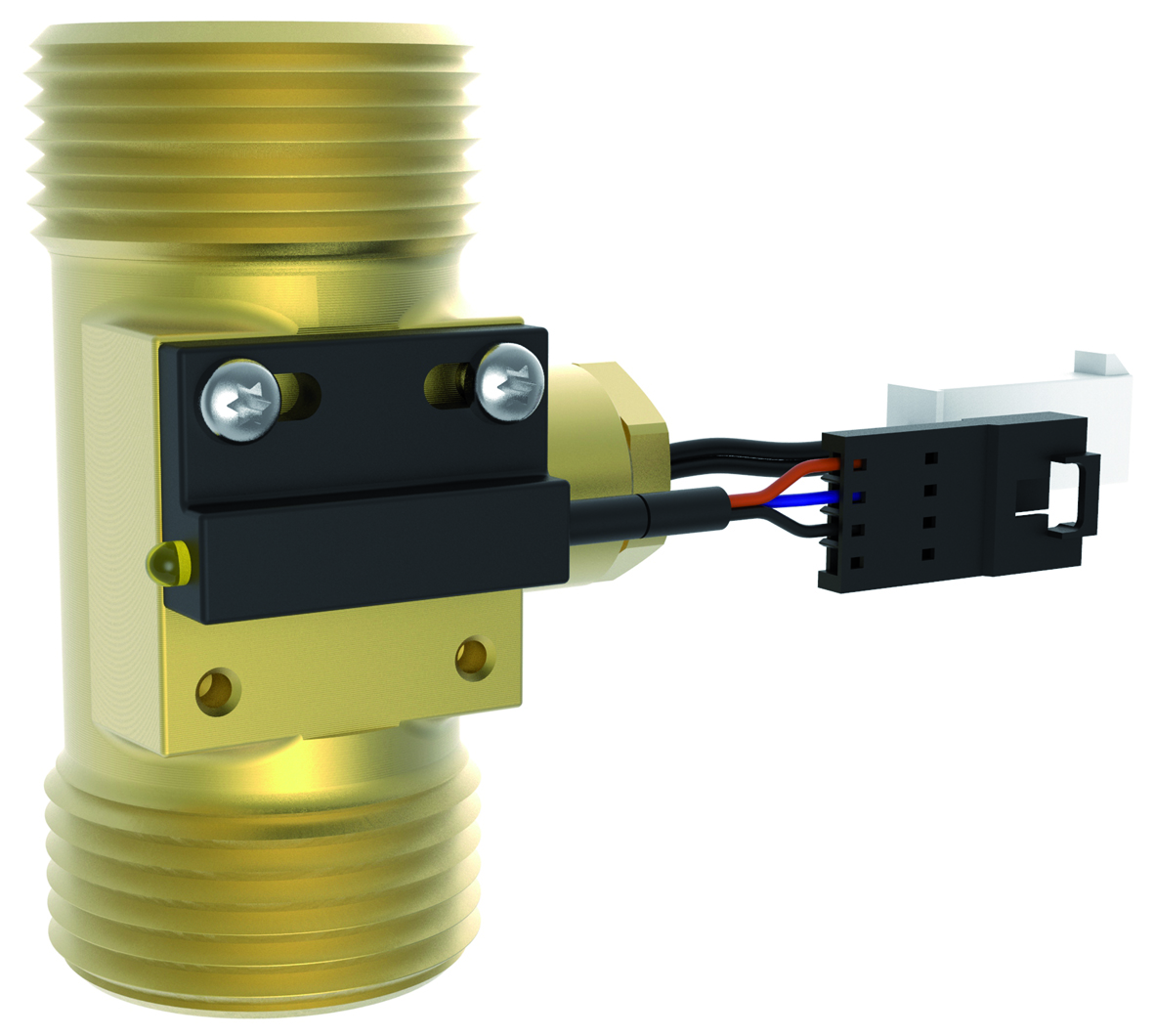

FlowRotor DN 20 (¾")
Measuring range: 0.5 - 15 l/min
Nominal diameter: DN 20 (¾")
Nominal pressure: PN
Equipment:
Impulse sensor 0.5-15 l/min
Hall sensor
Pt1000
Materials:
Valves and fittings : brass
Seals: EPDM
Nominal diameter: DN 20 (¾")
Nominal pressure: PN
Equipment:
Impulse sensor 0.5-15 l/min
Hall sensor
Pt1000
Materials:
Valves and fittings : brass
Seals: EPDM
Manufacturer:
Operating data
Max. operating temperature:
120 °C
Max. operating pressure:
10 bar
Measuring range flow meter:
0.5 ÷ 15
Dimensions
Nominal diameter:
DN 20 (¾")
Length:
70 mm
Materials
Valves and fittings:
Brass
Gaskets:
EPDM
Measuring range: 0.5 - 15 l/min
Nominal diameter: DN 20 (¾")
Nominal pressure: PN
Equipment:
Impulse sensor 0.5-15 l/min
Hall sensor
Pt1000
Materials:
Valves and fittings : brass
Seals: EPDM
Nominal diameter: DN 20 (¾")
Nominal pressure: PN
Equipment:
Impulse sensor 0.5-15 l/min
Hall sensor
Pt1000
Materials:
Valves and fittings : brass
Seals: EPDM
This product does not require any product safety instructions.
