Valves/Fittings

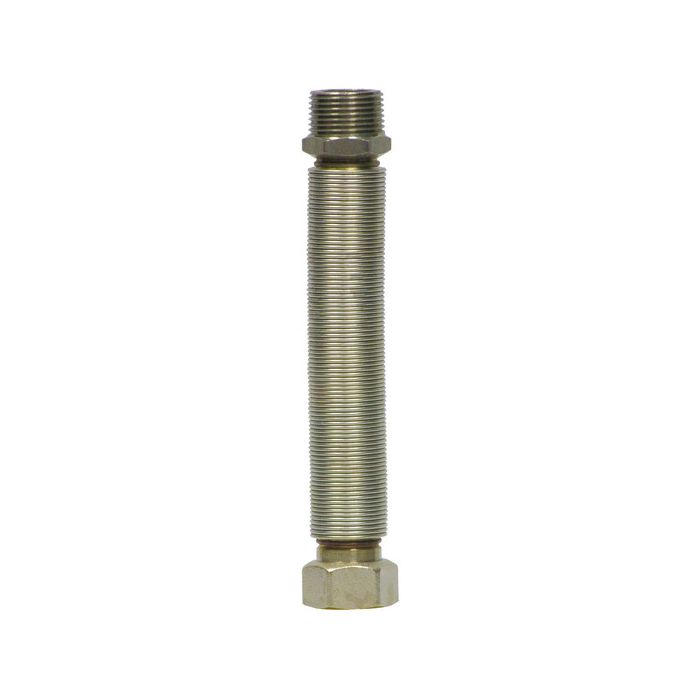

Flexan 180-300 mm
with 1 x joint
Manufacturer:
Operating data
Max. operating temperature:
180 °C
Min. operating temperature:
-30 °C
Nominal pressure:
16 bar
Burst pressure:
60
Dimensions
Length:
180 - 300 mm
Materials
Hose:
Stainless steel 1.4404
Nut:
Brass, nickel-plated
Flexan is a fitting system for flexible connections, it permits to quickly compensate length differences and offsets, for example for the assembly or exchange of radiators.
Stretchable by 75 %.
Not suited for dynamic loads!
In compliance with the Italian norms
- UNI-CIG 7129/72
- UNI-CIG 8041/85
- UNI-CIG 8042/85
Stretchable by 75 %.
Not suited for dynamic loads!
In compliance with the Italian norms
- UNI-CIG 7129/72
- UNI-CIG 8041/85
- UNI-CIG 8042/85
This product does not require any product safety instructions.
