Valves/Fittings

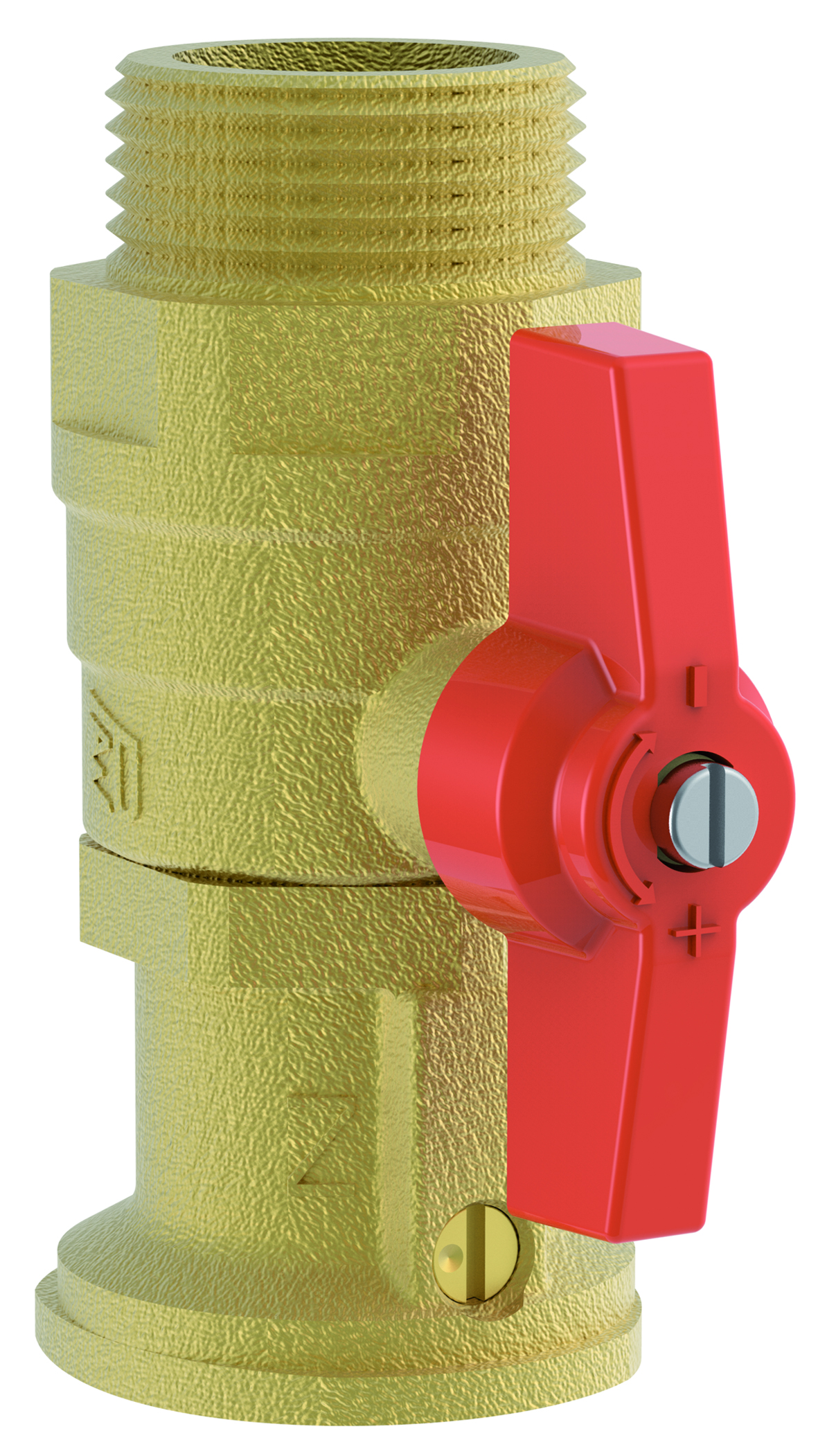

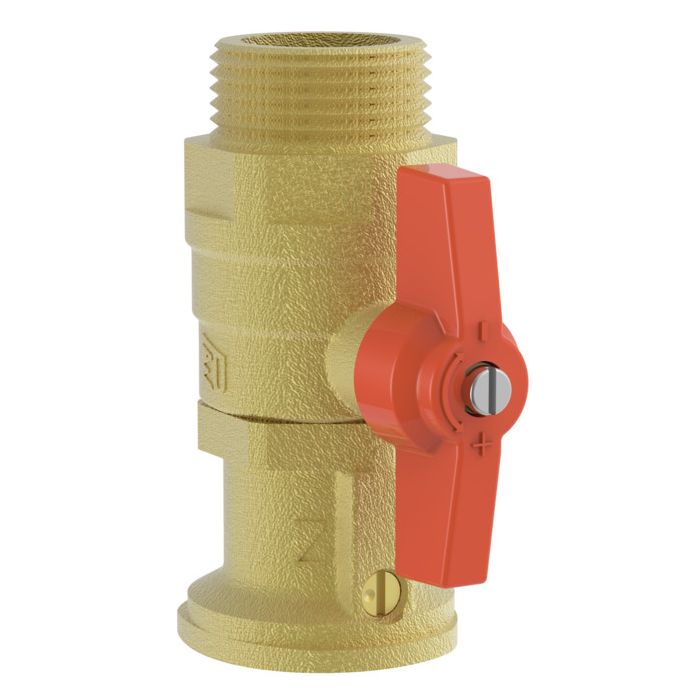

Pump ball valve (PKAS)
1 x PAW flange (without nut)
1 x internal thread
Material: brass
With automatic air passage and check valve (can be opened),
with red butterfly handle
1 x internal thread
Material: brass
With automatic air passage and check valve (can be opened),
with red butterfly handle
Manufacturer:
Operating data
Max. operating temperature:
110 °C
Nominal pressure:
10 bar
Equipment
Characteristics:
one side PAW flange, other side sleeve,with red butterfly handle,with integrated check valve, can be opened manually,with automatic air passage
Dimensions
Connection external thread:
1"
PAW flange (without nut):
1"
Length:
93 mm
Materials
Valves and fittings:
Brass
Handle:
Plastic
1 x PAW flange (without nut)
1 x internal thread
Material: Brass
With automatic air passage and check valve (can be opened), with red butterfly handle
1 x internal thread
Material: Brass
With automatic air passage and check valve (can be opened), with red butterfly handle
There are currently no installation and operating instructions available for download.
This product does not require any product safety instructions.
