- Best quality
- Quick assembly
- Longevity
Valves/Fittings

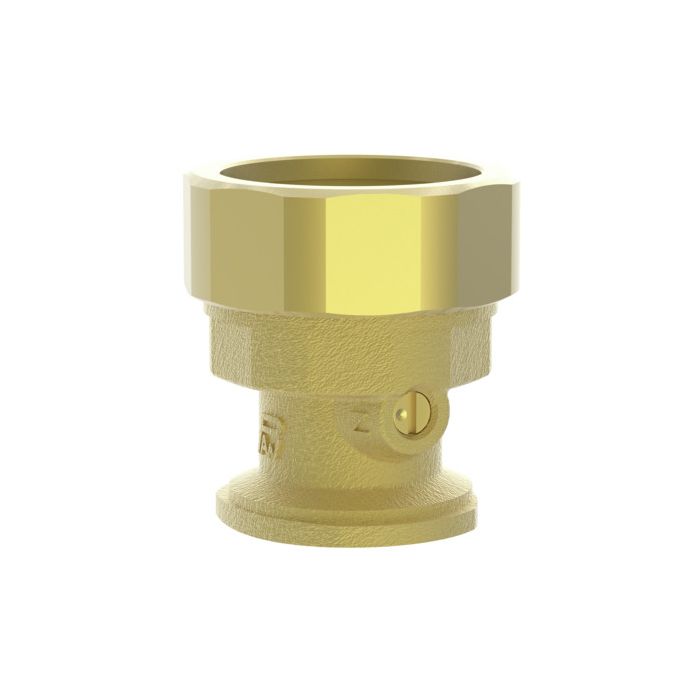

SBA with automatic air passage
Check valve, can be opened,
with union nut, seal and PAW flange for warm water central heating PN 10, 120 °C,
suited for horizontal and vertical installation,
to be screwed directly on the pump.
Opening pressure 200 mm wc
with union nut, seal and PAW flange for warm water central heating PN 10, 120 °C,
suited for horizontal and vertical installation,
to be screwed directly on the pump.
Opening pressure 200 mm wc
Manufacturer:
Operating data
Max. operating temperature:
120 °C
Nominal pressure:
10 bar
Opening pressure:
200 mmWS
Equipment
Characteristics:
can be opened manually,to be directly screwed to the pump,suitable for horizontal and vertical installation,with union nut, gasket and PAW flange,with automatic air passage
Dimensions
Nominal diameter:
DN 25 (1")
Connection external thread:
1½"
PAW flange (with nut):
1"
Length:
48 mm
Materials
Valves and fittings:
Brass
Check valve, can be opened, with union nut, gasket and PAW flange
for warm water central heating PN 10, 120 °C,
suited for horizontal and vertical installation,
to be screwed directly on the pump.
Opening pressure 200 mm wc
for warm water central heating PN 10, 120 °C,
suited for horizontal and vertical installation,
to be screwed directly on the pump.
Opening pressure 200 mm wc
There are currently no installation and operating instructions available for download.
This product does not require any product safety instructions.
